Explosion Proof Electric Floor Crane

Introducing our advanced series of Explosion Proof Electric Floor Cranes, engineered to meet the highest safety standards in hazardous and potentially explosive environments. Our collection features intrinsically safe cranes, flameproof designs, and ATEX certified models, providing peace of mind for operations in risky conditions. Each crane is built to offer maximum protection against electrical sparks and flames, making them ideal for industries where safety is paramount. Whether you need a crane for regular material handling or specialized lifting in hazardous environments, our electric cranes are equipped to deliver exceptional performance while adhering to strict safety regulations. With a focus on reliability and durability, our Explosion Proof Electric Floor Cranes are the go-to choice for industries seeking efficient and secure lifting solutions.

EMAIL



Product Description

Information

Introducing our innovative series of Explosion Proof Electric Floor Cranes, meticulously designed to ensure the highest level of safety in hazardous and explosive environments. This range includes intrinsically safe, flameproof, and ATEX certified models, providing assurance and safety for operations in high-risk areas. Each crane is crafted to offer exceptional protection against electrical sparks and flames, catering to industries that prioritize utmost safety. Ideal for both regular material handling and specialized tasks in dangerous settings, these cranes guarantee top-notch performance while strictly adhering to safety standards. Emphasizing reliability and durability, our Explosion Proof Electric Floor Cranes are the preferred solution for industries in need of safe and efficient lifting options.

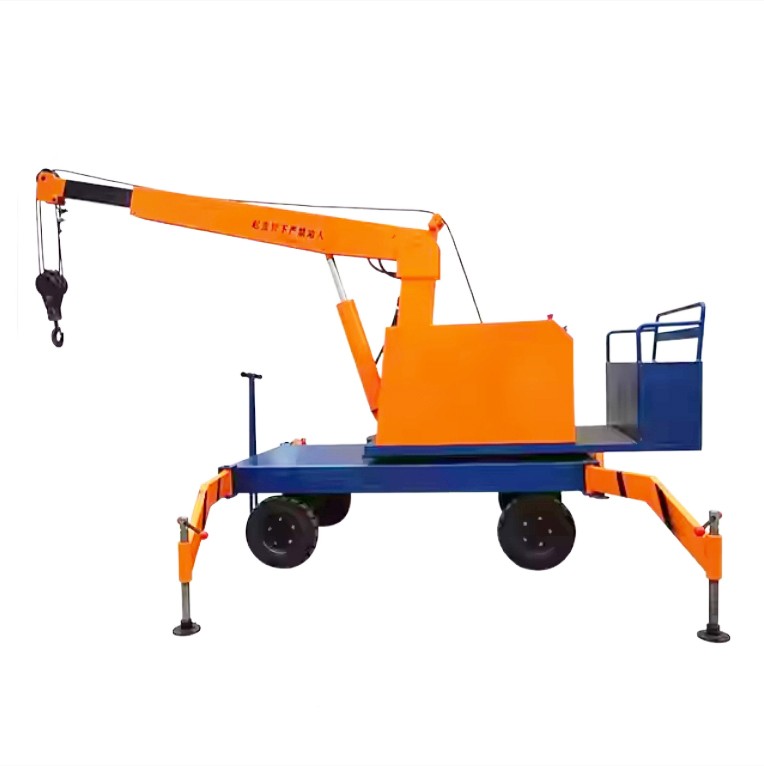

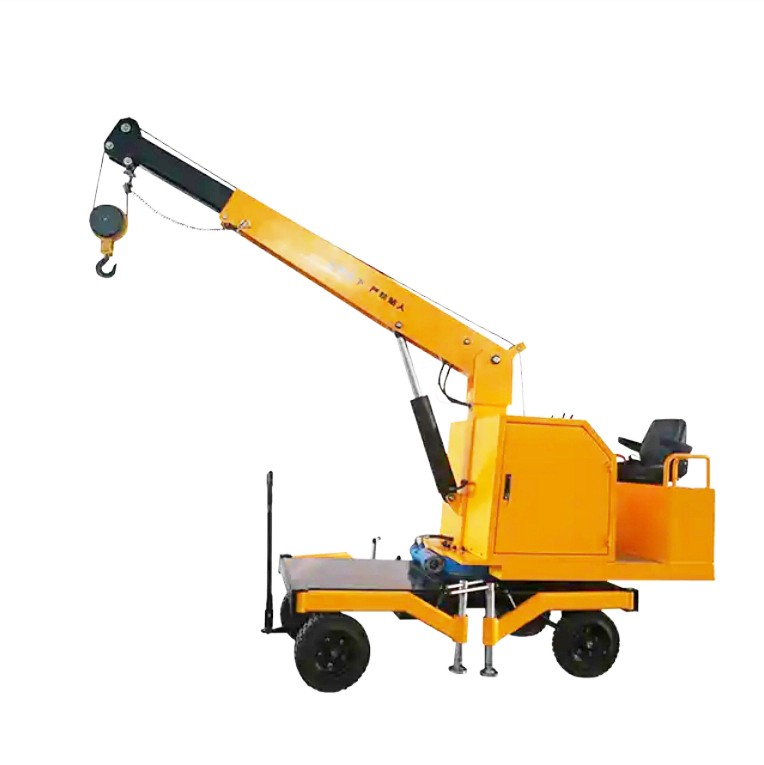

Additionally, our Semi Electric Floor Crane features a manual push drive and wire rope lifting mechanism, with a hook that reaches the floor for versatile lifting capabilities. This crane can be fitted with various attachments like crab buckets, clamps, and dustpans to suit different applications. Equipped with four pneumatic tires, it is perfectly suited for outdoor environments such as quarries, airports, stations, shipping yards, and water conservation areas.

The crane offers a seated operation with up and down movement and 360° rotation for ease of use, and its four straddles ensure lifting safety. We also provide customized designs upon request, including stationary models, iron-filling resistant features, and extended arms. Various electrical settings are available to match local plugs and power sources, ensuring the crane can be utilized effectively in different regions.


Product Information
Technical Data



Semi Electric Floor Crane

SDC-1T-D

SDC-2T-D

SDC-3T-D

Capacity (kg)

1000

2000

3000

Lifting Height (mm)

3000

3000

3000

Rotation (°)

360°

360°

360°

Arm Reach (mm)

1900-2500

1900-2500

1900-2500

Wire Rope Length (mm)

8000

8000

8000

Wire Rope Diameter (mm)

¢8

¢8

¢8

Chassis Length (mm)

1900

1900

1900

Chassis Width (mm)

1100

1100

1100

Straddles Length (mm)

800

800

1000

Min. Arm Extending Distance from Outriggers (mm)

600

550

500

Draw out Cylinder (mm)

¢50

¢50

¢50

Lifting Cylinder (mm)

¢63

¢80

¢80

Power Voltage (V)

380

380

380

Weight (Kg)

2250

2390

2850

Overall size(mm) L*W*H

3300*1200*1900

3500*1300*1900

3700*1500*1900

Turning Aisle (mm)

3500

3700

3900

Passing Aisle (mm)

1500

1600

1800

Pneumatic Tire (mm)

4*¢400*80

4*¢500*80

4*¢500*80

Note:All products are our standard products, design and specification are subject to change without prior notice.
