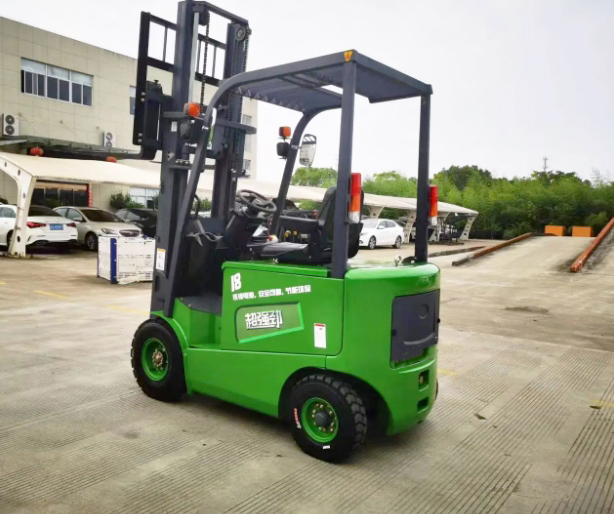

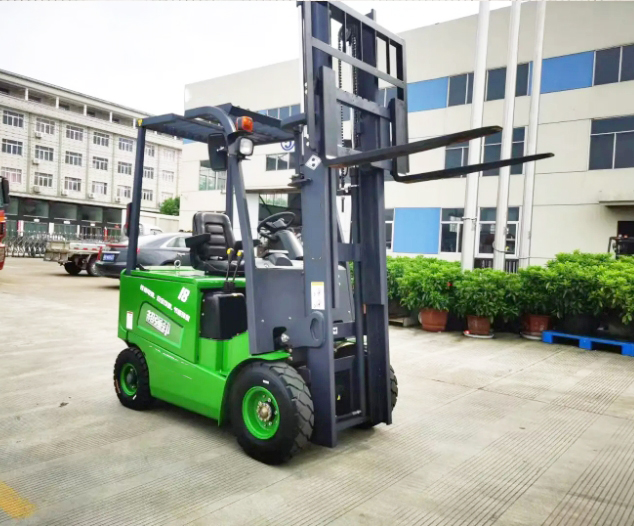

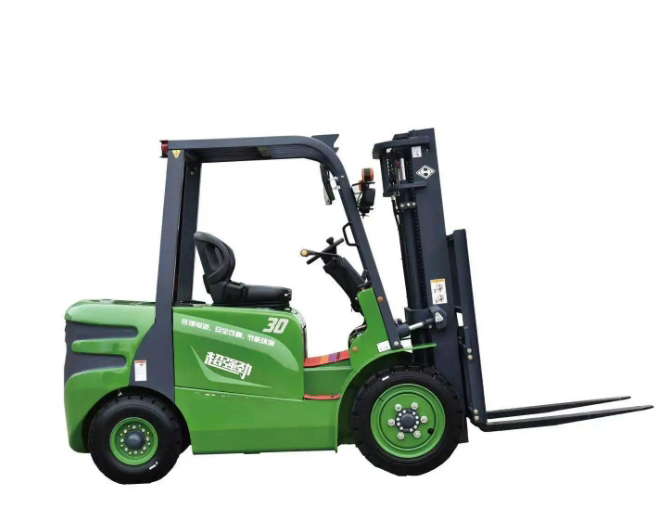

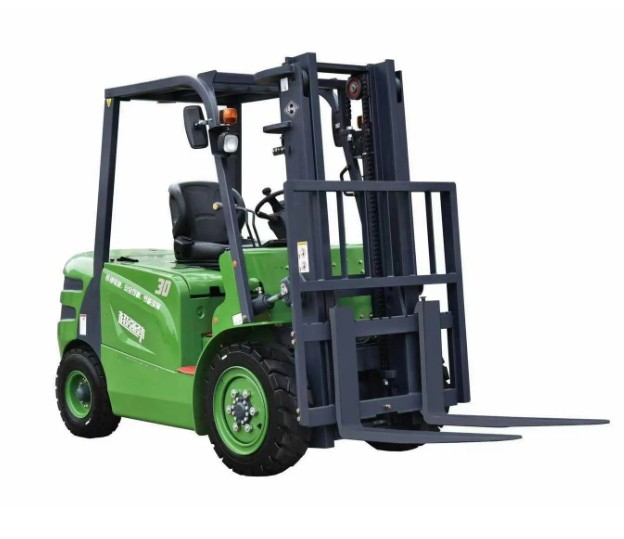

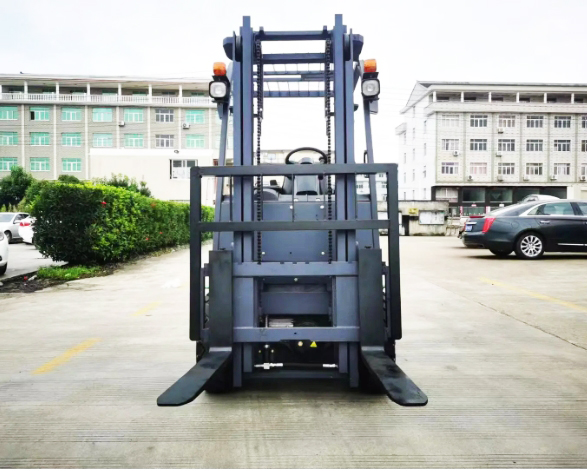

Electric Forklift Truck

1. Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
2. High quality pump station makes hand-hydraulic lift table lifts and fall very stable.
3. Up to standard CE

EMAIL



Product Description

What are the functions of Electric Lift Platform?
Raise or lower heavy material to desired position. Meanwhile,Avoid physical harm. Widely used in automotive, container, mold manufacturing, production lines, chemical canning, repair industry etc.
Ideal for Many Applications
The simplicity and compact design of these carts make them suitable for lifting and transporting loads, order-picking, die handling and assembly operations. An ergonomic solution to lifting, positioning and transporting.

Reliable & Stable
Overload valve design prevents damage from misuse of the truck and reduces the overall maintenance cost. Each cylinder is equipped with an internal hydraulic velocity fuse. The heavy duty steel construction is engineered to hold up in harsh environments. Two rigid front casters and two rear swivel (with brake) increase maneuverability in tight areas.

Safety & Comfort
Safety stops minimize the risk of an empty deck from lowering while performing maintenance. Diminishes the amount of worker bending and lifting, which reduces risk of injury. Raise and lower the deck with mini pain and strain.


Warning: Do not move while under load. Never use to lift people

Product Information

Specification of 2.0Ton Electric Forklift Truck

Specification1Model
HEF-20
2Rated capacitykg2000
3Load centermm500
4Lift heightmm4500
5Fork sizeL×W×Tmm1220×120×40
6Mast inclinationfront/back(α°/β°)Deg6/6
7With sideshifter
Size8Overall DimensionLength(to fork face)mm2380
9Overall Widthmm1150
10Mast lowered heightmm2050
11Height When Mast Liftingmm5450
12Safeguard Heightmm2150
13Turning Radius minmm2120
14Front Overhangmm490
15Treadfront/backmm970/950
16Ground Clearance minmm105
17Wheelbasemm1500
18Fork Spreadmin/maxmm240/1040
Performance19SpeedTravel (Laden)km/h13
20Lifting (Laden)mm/s230
21Grade abilityLaden%16
22Service Weight(include battery )kg4300
23Pneumatic TyresFront
7.00-12-12PR
24rear
18*7-8-14PR
Drive Power25MotorDrive MotorKw11
26Lift MotorKw10
27BatteryStandardV/Ah48/550
28ControllerManufacturer--CURTIS
29Type--AC+AC


Standards:
Operator tool kit, parts manual, operation manual, head lights, rear combination lights, turn signal lights, back-up lamp, standard seat with safety belt, rubber floor mat, hour meter

Remarks:
1: Include 12months from on board date or 2000hrs warranty whichever
come first(please check detailed information from HUAHE'S WARRANTY TERMS)
2: The specification and function are in accordance with our catalogue
3: Port of Shipment: NINGBO/SHANGHAI
4: Time of Shipment: 5 weeks after receipt of down payments
5: Term of Payment: T/T(30%T/T down payment, 70%T/T against B/L copy)
6: Brand: HUAHE
7: 1*20'GP could load 3UNITS, 1*40'HQ could load 6UNITS
