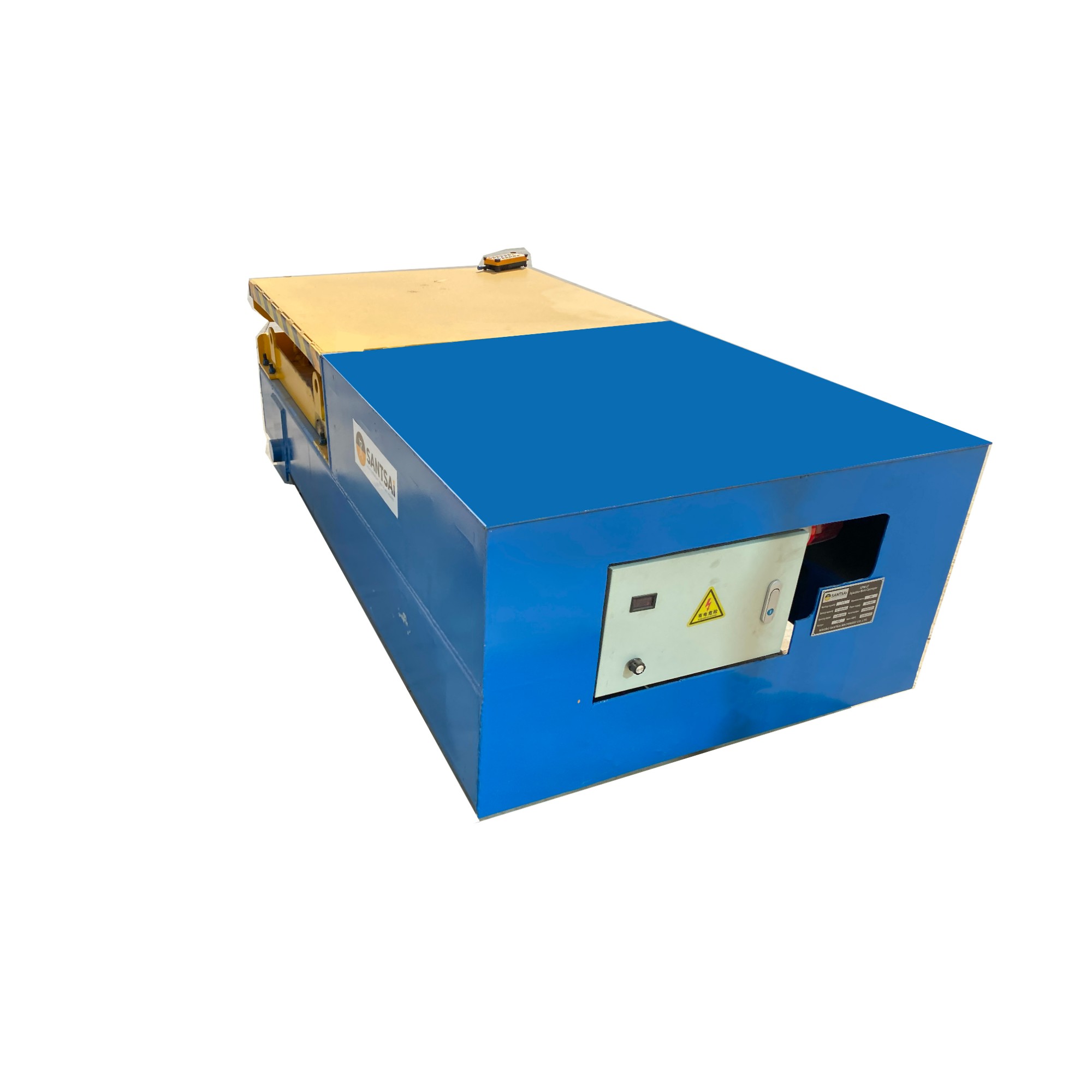

Electric flat Car - C

1. Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
2. High quality pump station makes hand-hydraulic lift table lifts and fall very stable.
3. Up to standard CE etc.

EMAIL



Product Description

Ideal for Many Applications
The simplicity and compact design of these carts make them suitable for lifting and transporting loads, order-picking, die handling and assembly operations. An ergonomic solution to lifting, positioning and transporting.

Reliable & Stable
Overload valve design prevents damage from misuse of the truck and reduces the overall maintenance cost. Each cylinder is equipped with an internal hydraulic velocity fuse. The heavy duty steel construction is engineered to hold up in harsh environments. Two rigid front casters and two rear swivel (with brake) increase maneuverability in tight areas.

Safety & Comfort
Safety stops minimize the risk of an empty deck from lowering while performing maintenance. Diminishes the amount of worker bending and lifting, which reduces risk of injury. Raise and lower the deck with mini pain and strain.
Warning: Do not move while under load. Never use to lift people.Unauthorized maintenance or training is strictly prohibited

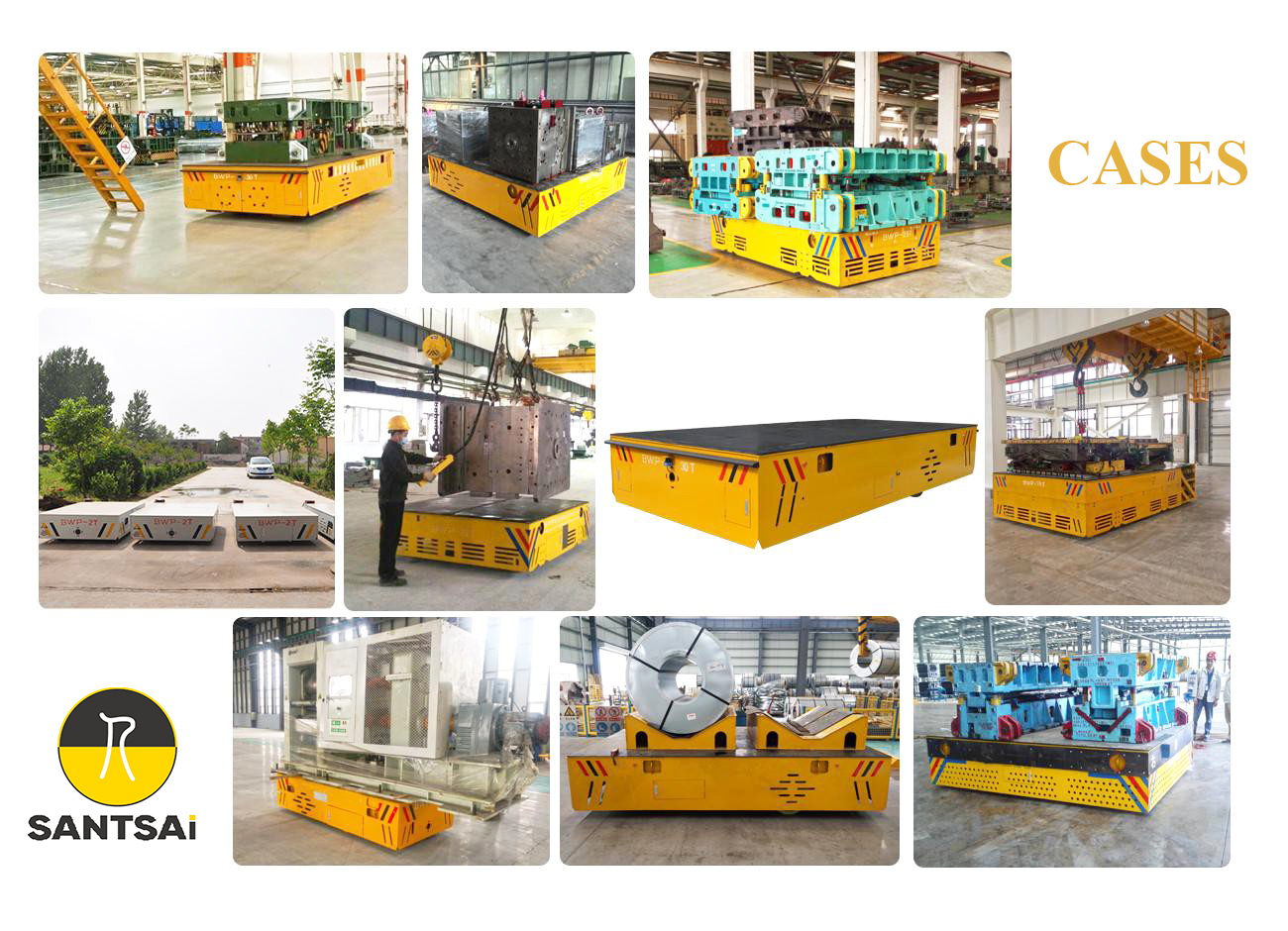

Mainly applied in the field of automotive, warehousing or logistics, papermaking, stereoscopic warehouse. It helps to achieve automated logistics transportation, reduce labor cost and improve the production efficiency.

Features for transfer cart:

1. The size is customized according to the requirements, with other required functions.
2. Exquisite drive module design, no skidding, light and comfortable operation, strong turning.
3. In situ rotation technology, turn and turn in situ, which is very suitable for most passageways and other occasions with limited space.
4. The car body is equipped with operation keys, which are easy to operate (press and go, and stop at the station automatically) without professional training.
5. The running speed can be up to 1m/s (the speed can be adjusted at will), which can meet the needs of most workshop logistics.

Product Parameter


Modle

BWP-2T

BWP-10T

BWP-30T

BWP-50T

BWP-80T

BWP-100T

Table Size (m)

2.0*1.5*0.45

2.3*2.0*0.55

3.5*2.2*0.7

5.5*2.6*0.8

6.5*2.8*0.95

6.6*3.0*1.2

Power

                                           Maintenance Free Battery

Wheel Base

1080mm

1650mm

1650mm

2000mm

1950mm

2000mm

Wheel Dia.

250mm

350mm

450mm

600mm

600mm

600mm

Running Speed

0-20m/min

0-20m/min

0-20m/min

0-20m/min

0-20m/min

0-20m/min

Motor Power

2*1.2kw

2*2.2kw

2*5.5kw

2*7.5kw

30kw

40kw

Battery Capacity

250Ah

250Ah

450Ah

500Ah

800Ah

1000Ah

Battery Volatge

24v

48v

48v

48v

72v

72v

Max Wheel Load

14.4Kn

42.6Kn

110.4Kn

174Kn

185Kn

190Kn

Reference weight

2.3t

4.2t

6.8t

8t

14.6t

26.8t


Note:All products are our standard products, design and specification are subject to change without prior notice.
