Capacity: 2000 kgs & Max.Height:178cm

1. CE Certification
2. 4400 LBS Capacity
2. Max lifting height: 70"
3. Lowered Height: 14.2"
4. Table Size: 51" L X 33" W
5. Power: 1500W/ 110V/60HZ
6.. Lift time: 65s

Product Description

What are the functions of Electric Lift Platform?
Raise or lower heavy material to desired position. Meanwhile,Avoid physical harm. Widely used in automotive, container, mold manufacturing, production lines, chemical canning, repair industry etc.
1) Reliability
•   CE Certification
•   Heavy-duty design
2) Efficiency

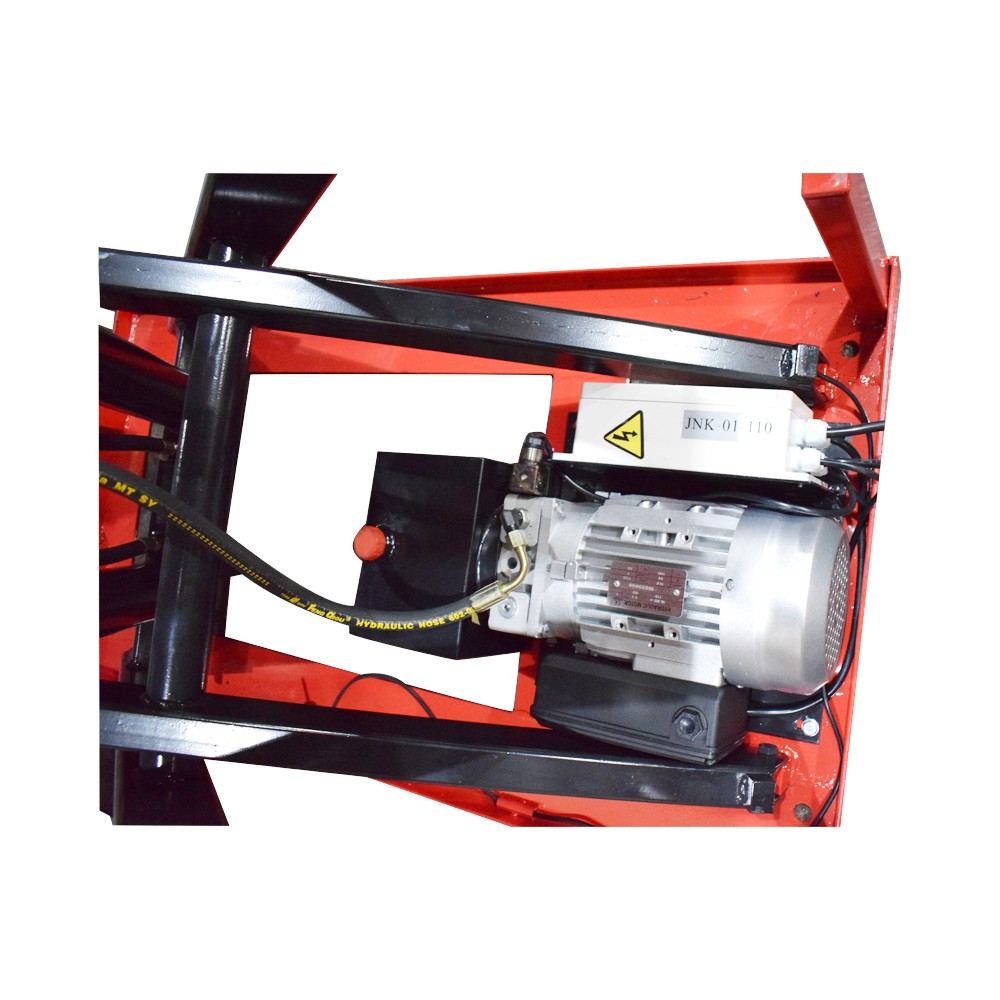

•   Low-Voltage(24V) control box with up-down buttons
•   Pieces moving parts with self-lubricating guide ring
3) Safety and Easy Maintenance

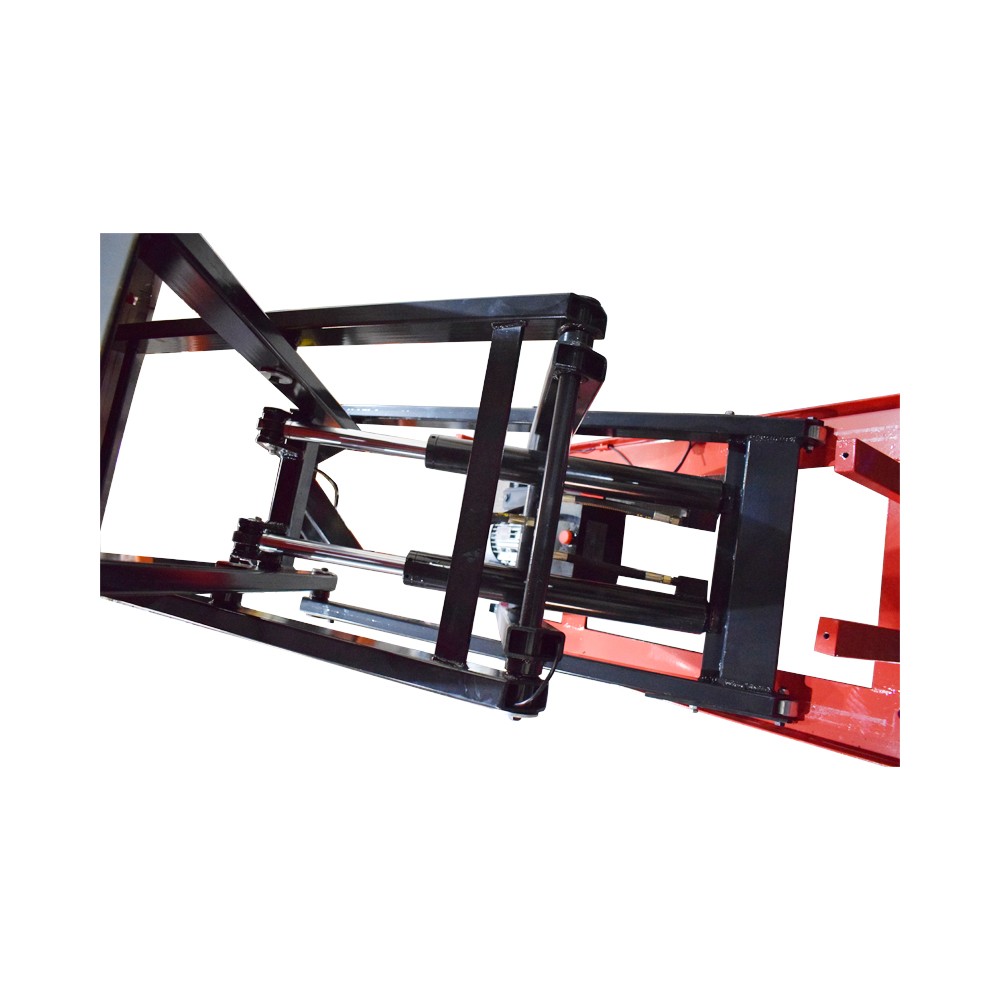

•   Heavyduty cylinders with drainage system and check valve to stop the Lift Table lowering in case of hose burst.
•   Removable rings, mesa makes the pipes easier to install and maintenance
•   Wedgeblock is equipped with a safety guard, convenient maintenance

Warning
• Unauthorized maintenance or training is strictly prohibited.

Product Information

Technical Details

Model		SS_ETW2000
Capacity		4400 lbs	2000 kgs
Min. Height	h13	14.2"	36 cm
Max.Height	h12	70"	178 cm
Table Dimensions	a/b	51" x 33.4"	130x85cm
Motor Power		1500 W	1500 W
Voltage		110V/60Hz	110V/60Hz
Lift Time		65s	65s
Truck weight		649 lbs	295 kgs
Gross Weight		659 lbs	303 kgs
Carton Size		52" x 34" x 10.5"	131x86x270 cm
