20 Ton 180° Mold Flipper

Welcome to the realm of enhanced productivity and efficiency in mold handling with SANTSAI's cutting-edge solution - the Customized 10 Ton 180° Mold Flipper. As a leading manufacturer of automation solutions, SANTSAI introduces this equipment that sets new benchmarks for mold handling capabilities. With its customizable features, the 10 Ton 180° Mold Flipper effortlessly rotates molds up to 180 degrees, ensuring seamless operations and optimized efficiency. The team at SANTSAI closely collaborates with you, understanding your specific requirements and tailoring the flipper accordingly for seamless integration into your workflow. Experience unmatched productivity and efficiency in mold handling with SANTSAI's Customized 10 Ton 180° Mold Flipper, empowering your operations for peak performance.

Benefits & Features

When any die / mould used in horizontal Injection moulding or Die Casting Machine is to be opened for maintenance, it requires to be turned 90 degree first. Smaller moulds are easier to turn 90 degree however when moulds are very big and heavy, it’s a very risky, time taking and laborious job.In order to turning the large dies / moulds is safer and quicker. We have two solutions for this – 90 degree turn Table and 180 degree Mould Flipper.

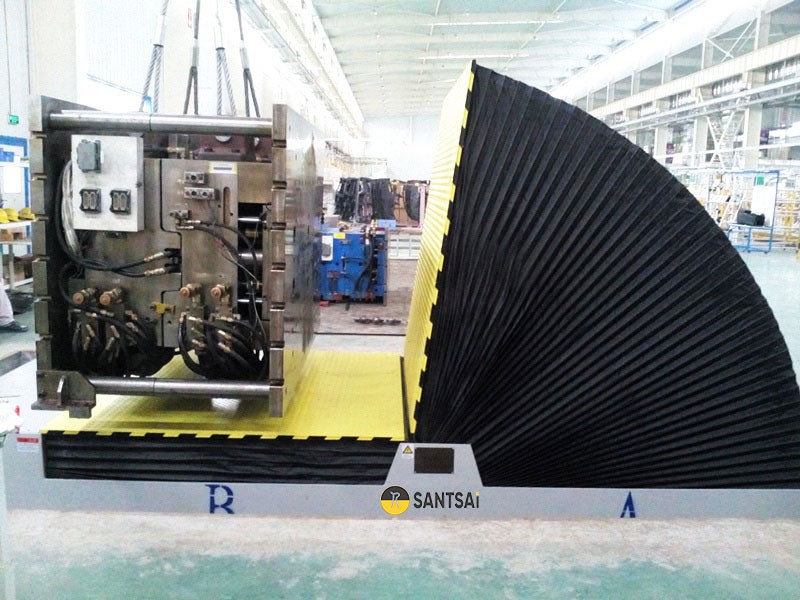

180 degree Mold Turning Machine is an indispensable auxiliary equipment for turning medium to large sized molds. It is the prefect counterpart to be used in conjunction with any vertical die spotting press machines. It is also the ideal equipment for repairing any large sized molds.

● Hydraulic cylinder driven
● Make the mold & die rev rse at 90 degree
● Fast and convenient overturning process
● The tables can rest at 180 degree
● Whole hydraulic system can be accommodated in pit
● Easy operation

Parameter

Model	Table Size (mm)	Height (mm)	Capacity (KN)	0-90° (sec)	Weight (t)
PMF-5	1250×1100	300	50	20	2
PMF-10	1400×1200	400	100	25	4
PMF-15	1600×1400	470	150	30	6
PMF-30	2000×2000	570	300	40	11
PMF-50	2600×2600	800	500	150	18
